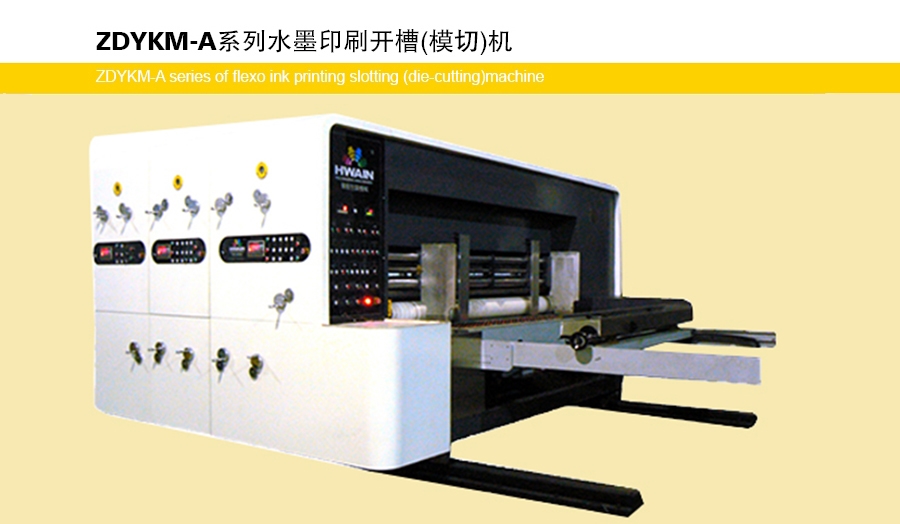

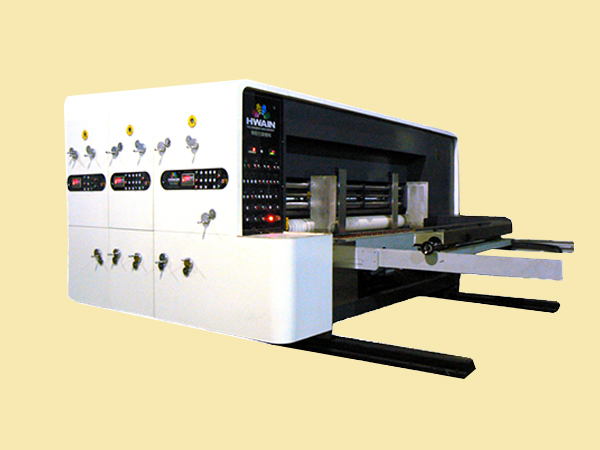

本機簡介:

◎ 本機由送紙部、印刷部、開槽部、模切部四部分組成并可根據用戶生產情況隨意組合。

◎ 本機可以與接料機、邊角清除機組成普通全自動生產流水線。

◎ 送紙部采用前緣送紙系統。

◎ 進紙方式可選擇無軸進紙或有軸進紙。

◎ 配有高壓吸塵、毛刷或毛刷軸二級除塵系統。

◎ 網紋輥可配膠輥或刮刀兩種上墨方式，并且可快裝組合。

◎ 版輥橫移可選擇PLC控制或手輪調整。

◎ 傳動齒輪采用優質合金鋼，滲碳淬火后精磨制造。

◎ 齒輪采用噴淋潤滑和潤滑脂集中供油潤滑系統，并具備油路平衡功能。

◎ 主機、風機采用變頻控制，相位電機可采用PLC觸摸屏控制或數字控制。

◎ 開槽部采用PLC觸摸屏控制可實現紙箱數據輸入一鍵成型，并具有訂單儲存功能。

Brief Introduction:

◎ This machine is composed of four units, which are feeding unit, printing unit, slotting unit, die cutting unit and it can be freely combined according to user’s production situation.

◎ This machine can make up normal automatic production line with stacker, corner cleaner machine.

◎ Feeding unit adopts lead edge feeder.

◎ The feeding adopts without shaft feeding or shaft feeding.

◎ Equipped with high pressure vacuum device, brush or brush shaft two stage dust removal system.

◎ Anilox roller can be equipped with rubber roller and doctor blade two ways of supplying inking, and be quickly combined.

◎ Printing roller lateral movement is controlled by PLC or handwheel.

◎ Transmission gear adopts high quality alloy steel, fine grinding is manufactured after carburizing and quenching.

◎ Gear adopts spray lubrication and lubricating grease centralized oil supplied lubricating system, and has oil line balance function.

◎ Main and blower adopt frequency conversion control, and the phase motor can be controlled by PLC touch screen or digital control.

◎ The slotting until adopts PLC touch screen to control the data input of the carton, and has the order storage function.
